IXHUB 7Inch Embedded HMI Panel IP65 Waterproof Wall mounted Aluminum Frame Monitor for Bus Pos/Smart Locker/ Smart Home/Charging Pile
|
Specifications |
7 inch smart center control screen |
||
|
Product model |
IXP070L1-A133P |
IXP070L1-RK3288 |
IXP070L1-RK3568 |
|
resolution |
1024*600 |
||
|
display scale |
16:9 |
||
|
Display area |
154.1*85.9mm |
||
|
panel type |
IPS |
||
|
visual angle |
Full perspective |
||
|
brightness |
|||
|
Touch screen type |
capacitance |
||
|
Touch mode |
5-point touch |
||
|
Glass thickness |
1.8mm |
||
|
Glass surface hardness |
>6H |
||
|
Transmittance of glass |
85% |
||
|
Touch surface material |
Flat tempered glass |
||
|
Panel protection class |
Front panel IP65, rear cover IP20 |
||
|
Overall dimensions |
189.4*121.2mm |
||
|
Case color |
Silver/Black |
||
|
Program |
Allwinner A133P |
Rockchip RK3288 |
Rockchip RK3568 |
|
CPU |
4-Core A53，Clocked at 1.8GHz |
4-Core A17，Clocked at 1.8GHz |
4-Core A55，Clocked at2.0GHz |
|
GPU |
GE8300 |
Mali-T764 |
Mali-G52 2EE |
|
Memory + Storage |
1GB+8GB, 2GB+16GB, 4GB+32GB |
2GB+16GB, 4GB+32GB |
2GB+16GB, 4GB+32GB, 8GB+64GB |
|
HDMI |
NO |
HDMI 2.0 |
HDMI 2.0 |
|
Ethernet |
100Mbps |
Gigabit |
Gigabit |
|
COM |
Support (optional, choose between COM and Uart6) |
NO |
NO |
|
CAN |
NO |
NO |
Support (optional, choose between CAN and COM6) |
|
WiFi |
Standard Single frequency WiFi6 (Optional Dual-band WiFi6) |
||
|
Bluetooth |
WiFi6 standard BT 5.2 |
||
|
HP & MIC |
1-way 4-segment integrated 3.5mm socket for earphones |
||
|
power amplifier |
1 channel 8Ohm/3W dual audio amplifier output (Built-in 8Ohm/3W speaker, optional) |
||
|
USB |
2 USB socket, 2 USB hosts, 1 USB OTG socket |
||
|
Serial port |
2-way TTL, 2-way RS232, 2-way RS485 (Optional 6 TTL or 4 RS232) |
||
|
4G/5G (Optional) |
EC800M/EC600/EC20, RG200U(5G) |
||
|
GPS (Optional) |
EC800M, Supports dual positioning of Beidou and GPS |
||
|
POE (Optional) |
One built-in POE module, which supports POE power supply for the RJ45 network port |
||
|
SIM |
1-way Micro SIM card slot |
||
|
TF |
1-way self-ejecting TF card socket, up to 256GB TF card support |
||
|
GPIO |
4-way GPIO signal |
||
|

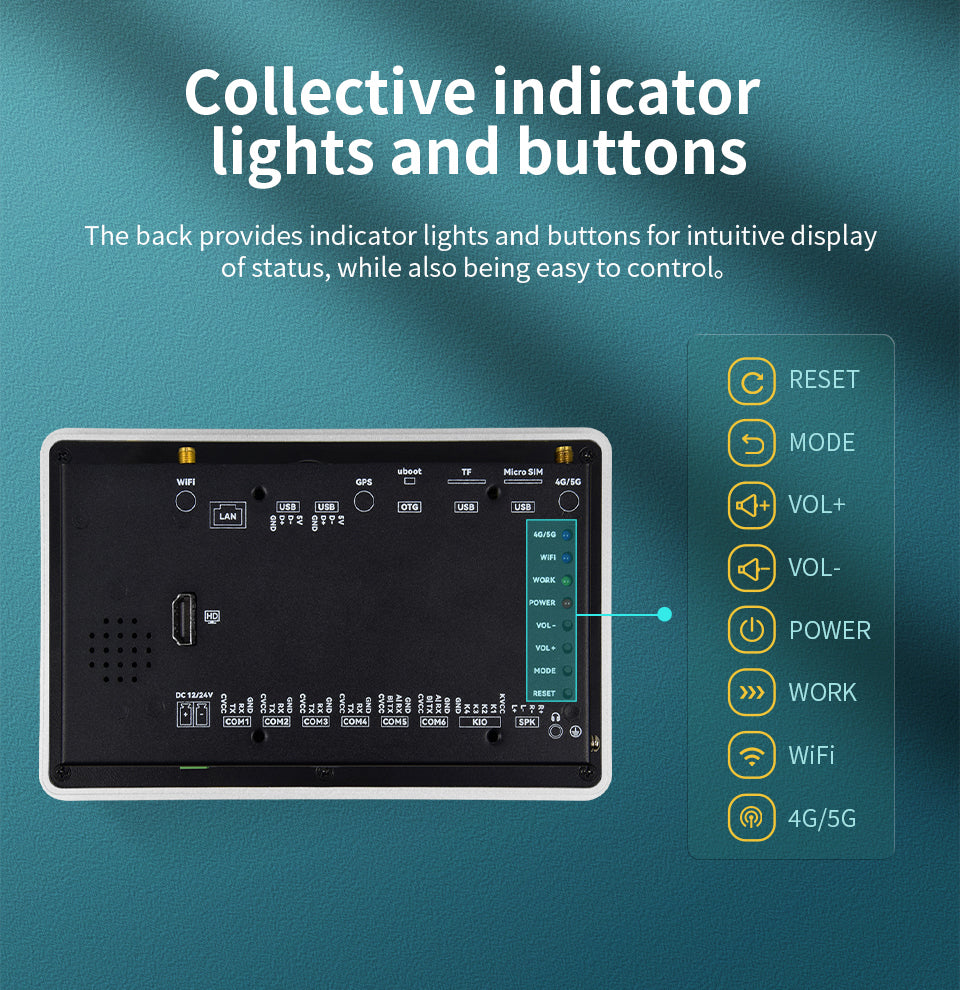

LED |
4-way, power light, running indicator light, WiFi indicator light, 4G/5G network indicator light |
||
|
User buttons |
Reset key, return key, volume+ and volume -, burn key |
||
|
Source |
1 circuit, DC12V ± 5%/DC24V ± 5% power supply, DC 2P-3.81MM |
||
