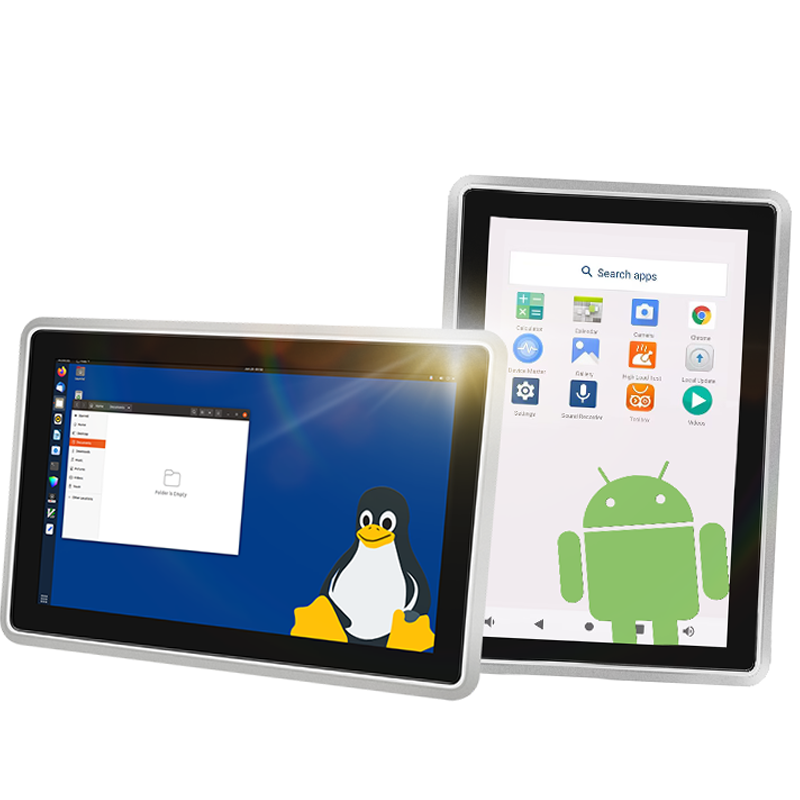

IXHUB Industrial Embedded All In One Computer with 30W POE Power Supply IPS Capacitive Touch panel Andriod12 Ubuntu20.04
|
Specifications |
10.1 inch smart center control screen |
||
|
Product model |
IXP101H1-A133P |
IXP101H1-RK3288 |
IXP101H1-RK3568 |
|
resolution |
800*1280 |
||
|
display scale |
5:8 |
||
|
Display area |
136*217.2mm |
||
|
panel type |
IPS |
||
|
visual angle |
Full perspective |
||
|
brightness |
500 cd/m²(Optional 1000 cd/m²) |
||
|
Glass thickness |
1.8mm |
||
|
Glass surface hardness |
>6H |
||
|
Transmittance of glass |
85% |
||
|
Touch surface material |
Flat tempered glass |
||
|
Touch screen type |
capacitance |
||
|
Touch mode |
5-point touch |
||
|
Panel protection class |
Front panel IP65, rear cover IP20 |
||
|
Overall dimensions |
180.7*262.1mm |
||
|
Case color |
Silver or Black |
||
|
Program |
Allwinner A133P |
Rockchip RK3288 |
RockchipRK3568 |
|
CPU |
4-Core A53，Clocked at 1.8GHz |
4-Core A17，Clocked at 1.8GHz |
4-Core A55，Clocked at2.0GHz |
|
GPU |
GE8300 |
Mali-T764 |
Mali-G52 2EE |
|
Memory DDR |
1G/2G/4G |
2G/4G |
2G/4G/8G |
|
Storage Flash |
8G/16G/32G/64G/128G |
16G/32G/64G/128G |
16G/32G/64G/128G |
|
System |
Android10/ Ubuntu18.04/LinuxQT |
Android7.1/5.1/6.0/8.1/ Ubuntu-18.04/LinuxQT Debian9 |
Android11/12 Ubuntu-20.04/22.04/ Debian11/LinuxQT |
|
HDMI |
NO |
HDMI 2.0 |
HDMI 2.0 |
|
Ethernet |
100Mbps |
1000Mbps |
1000Mbps |
|
COM |
Support (optional, choose between COM and Uart6) |
NO |
NO |
|
CAN
|
NO |
NO |
Support (optional, choose between COM and Uart6) |
|
WiFi
|
Standard Single frequency WiFi6(Optional Dual-band WiFi6) |
||
|
Bluetooth
|
WiFi6 standard BT 5.2 |
||
|
HP& MIC
|
1-way 4-segment integrated 3.5mm socket for earphones |
||
|
Power amplifier
|
1 channel 8 euro 3W dual audio amplifier output (Built-in 8 euro 3W speaker, optional) |
||
|
USB
|
2USB socket, 2 USB hosts, 1 USB OTG socket |
||
|
Serial port
|
2-way TTL, 2-way RS232, 2-way RS485 |
||
|

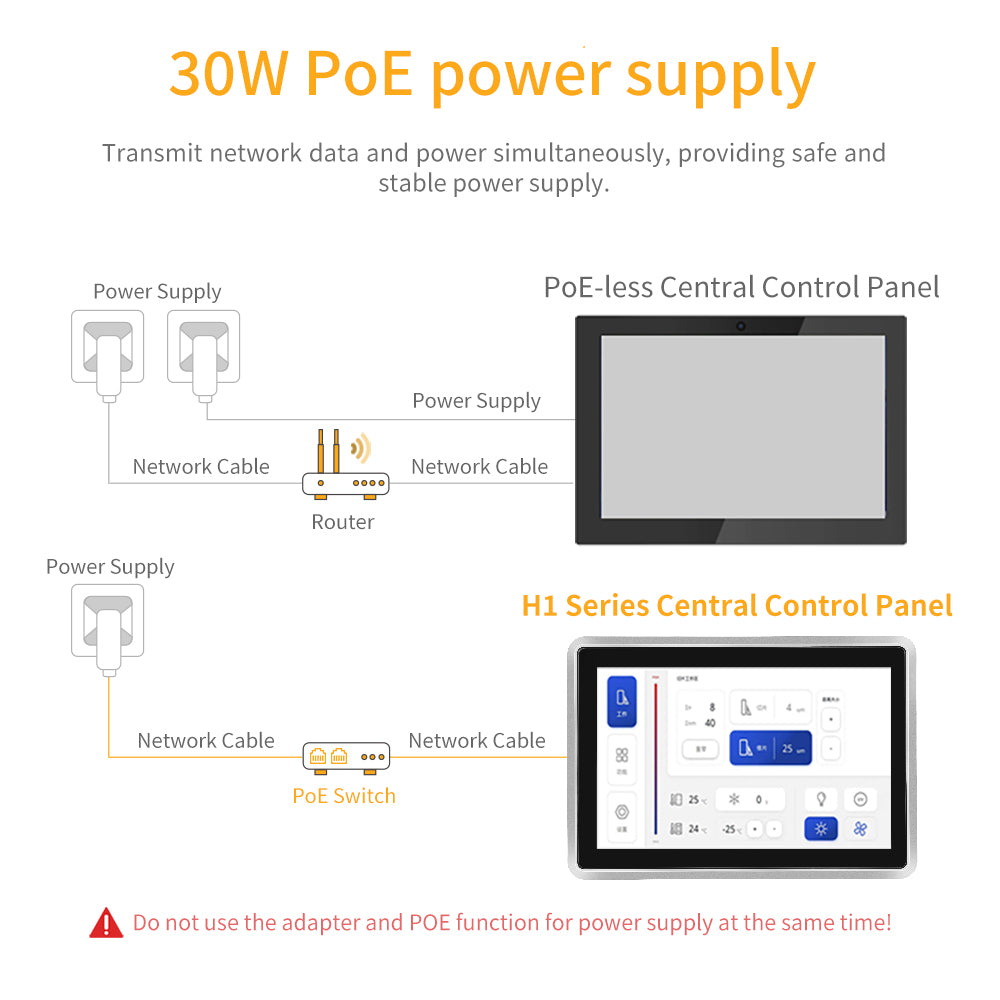

POE (Optional) |
One built-in POE module, which supports POE power supply for the RJ45 network port（30W or 70W optional） |
||
|
4G/5G (Optional) |
EC25EFA/EC25EUXGR/EC25JFA/EC25AUXGR/EC25AFXGA/EC25AUXGR/EG25GGB 4G module with GPS |
||
|
GPS (Optional) |
Need 4G module,Supports dual positioning of Beidou and GPS |
||
|
SIM |
1-way Micro SIM card slot |
||
|
TF |
1-way self-ejecting TF card socket, up to 256GB TF card support |
||
|
GPIO |
4-way GPIO signal |
||
|
LED |
4-way, power light, running indicator light, WiFi indicator light, 4G/5G network indicator light |
||
|
RTC |
Ultra-low power RTC circuit (CR1220 button battery), support timing switch |
||
|
Button |
Reset key, return key, volume+and volume -, burn key |
||
|
Source |
1 circuit, DC12V ± 5%/DC24V ± 5% power supply, DC 2P-3.81MM |
||
