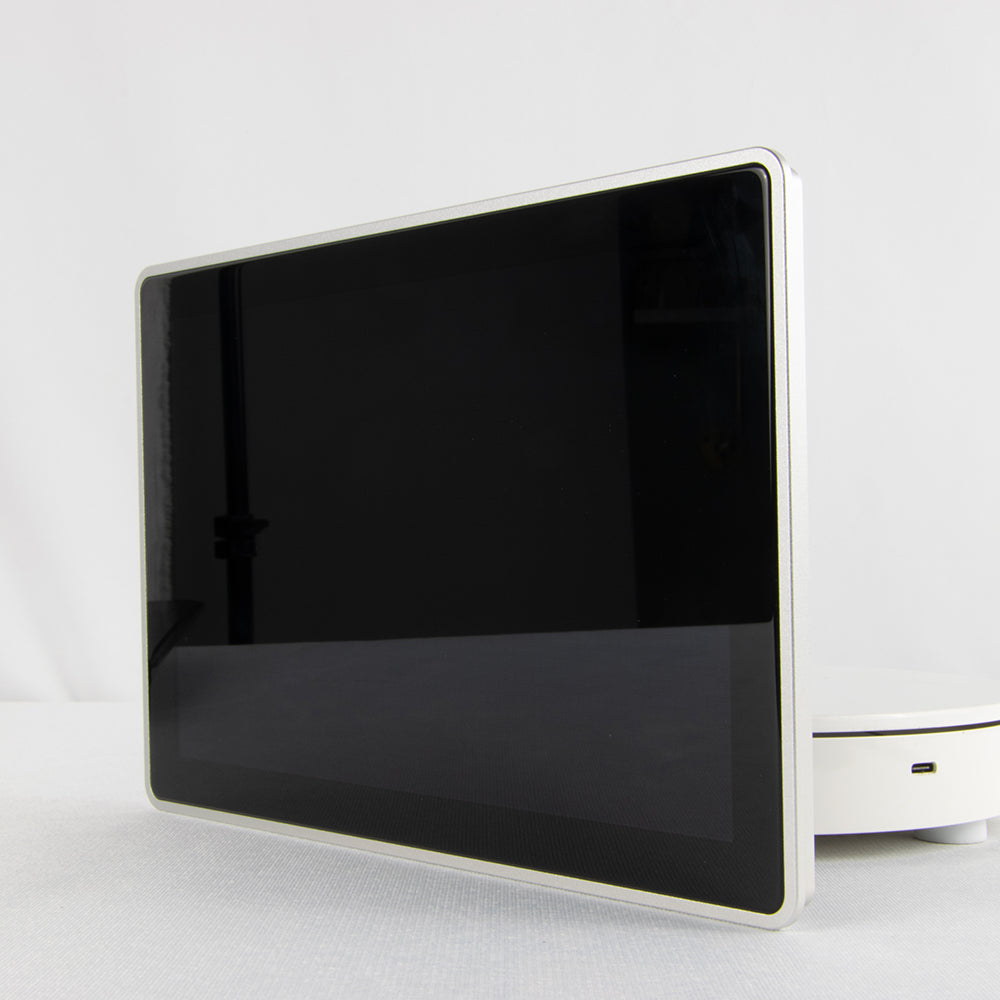

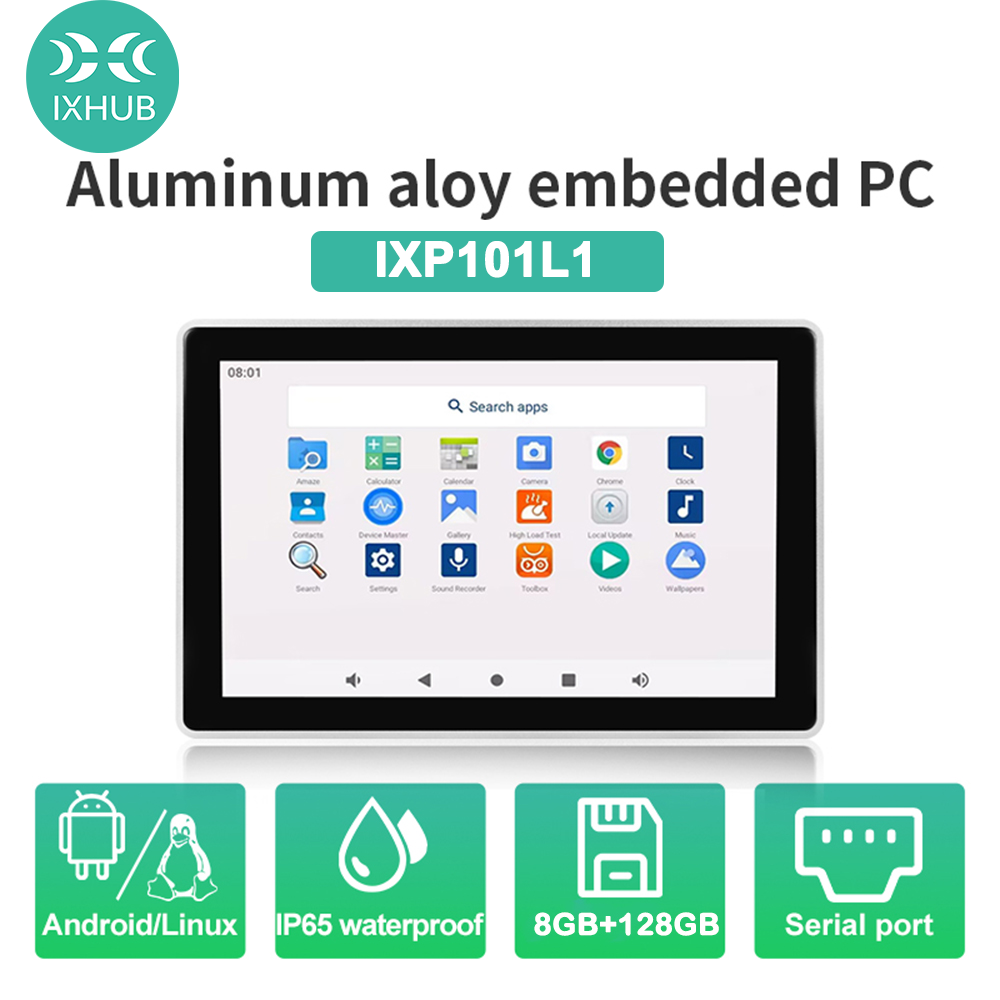

IXHUB 10.1Inch Embedded Industrial Tablet Computer Panel PC HMI IPS Capacitive Touch Screen IP65 Waterproof Android Ubuntu Linux
|
Specifications |
10.1Inch |
||
|
Product model |
IXP101L1-A133P |
IXP101L1-RK3288 |
IXP101L1--RK3568 |
|
resolution |
800*1280 |
||
|
display scale |
5:8 |
||
|
Display area |
136*217.2mm |
||
|

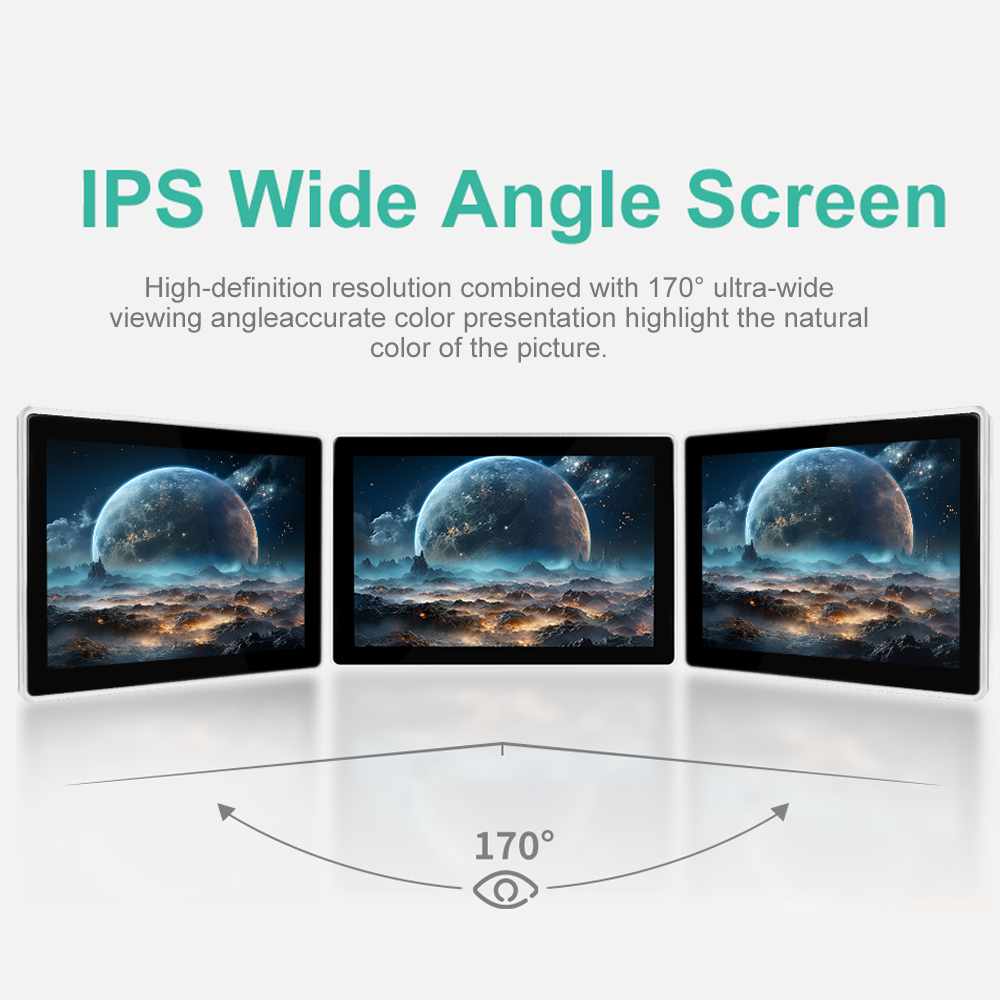

panel type |
IPS |
||
|
visual angle |
Full perspective |
||
|

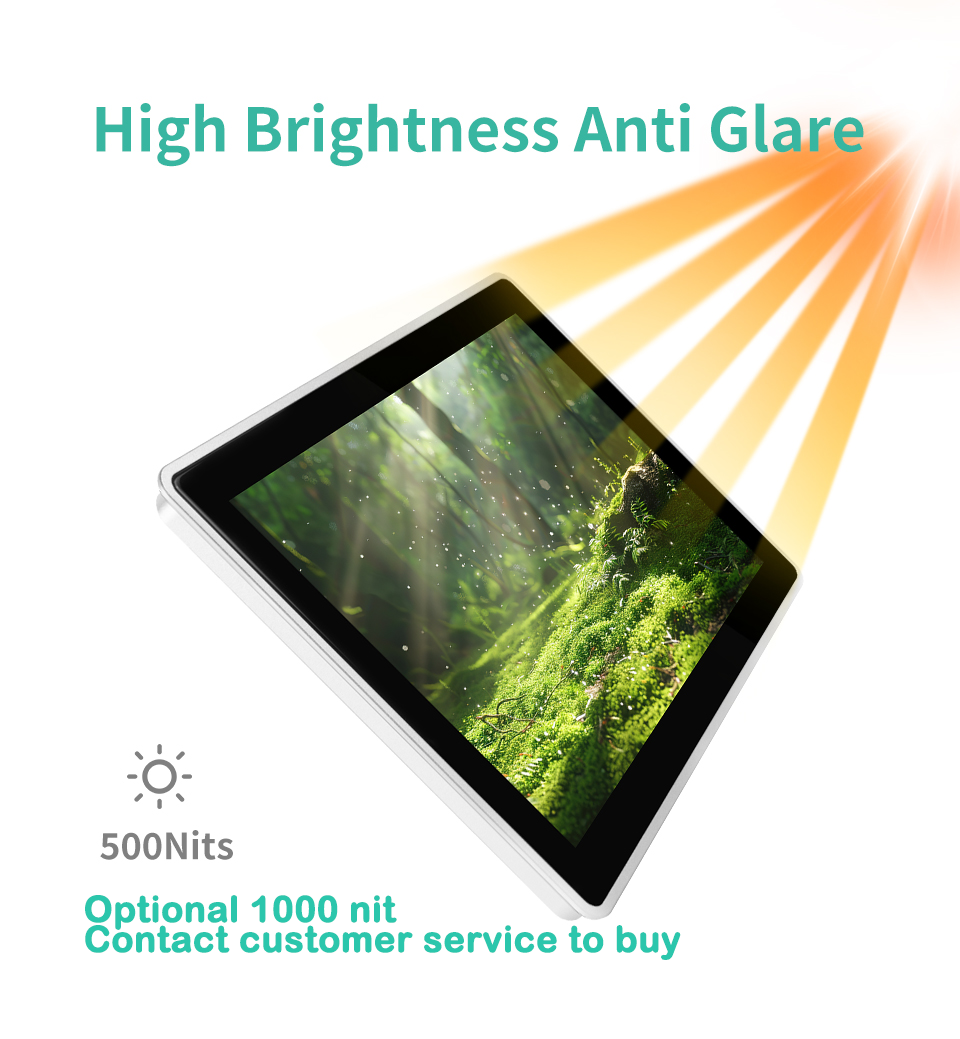

brightness |
500 cd/m² 1000 cd/m²（Optional） |
||
|
Touch screen |
capacitance |
||
|
Touch mode |
5-point touch |
||
|
Glass thickness |
1.8mm |
||
|
Glass transmittance |
85% |
||
|
Touch surface material |
2.5D tempered glass |
||
|
waterproof-Front |
IP65 |
||
|
waterproof-Back |
IP20 |
||
|
Overall dimensions |
175.9*261.9mm |
||
|
Program |
Allwinner A133P |
Rockchip RK3288 |
RockchipRK3568 |
|
CPU |
4-Core A53，Clocked at 1.8GHz |
4-Core A17，Clocked at 1.8GHz |
4-Core A55，Clocked at2.0GHz |
|
GPU |
GE8300 |
Mali-T764 |
Mali-G52 2EE |
|
Memory DDR |
1G/2G/4G |
2G/4G |
2G/4G/8G |
|
Storage Flash |
8G/16G/32G/64G/128G |
8G/16G/32G/64G/128G |
8G/16G/32G/64G/128G |
|
System |
Android10/ Ubuntu18.04/LinuxQT |
Android7.1/5.1/6.0/8.1/ Ubuntu-18.04/LinuxQT Debian9 |
Android11/12 Ubuntu-20.04/22.04/ Debian11/LinuxQT |
|

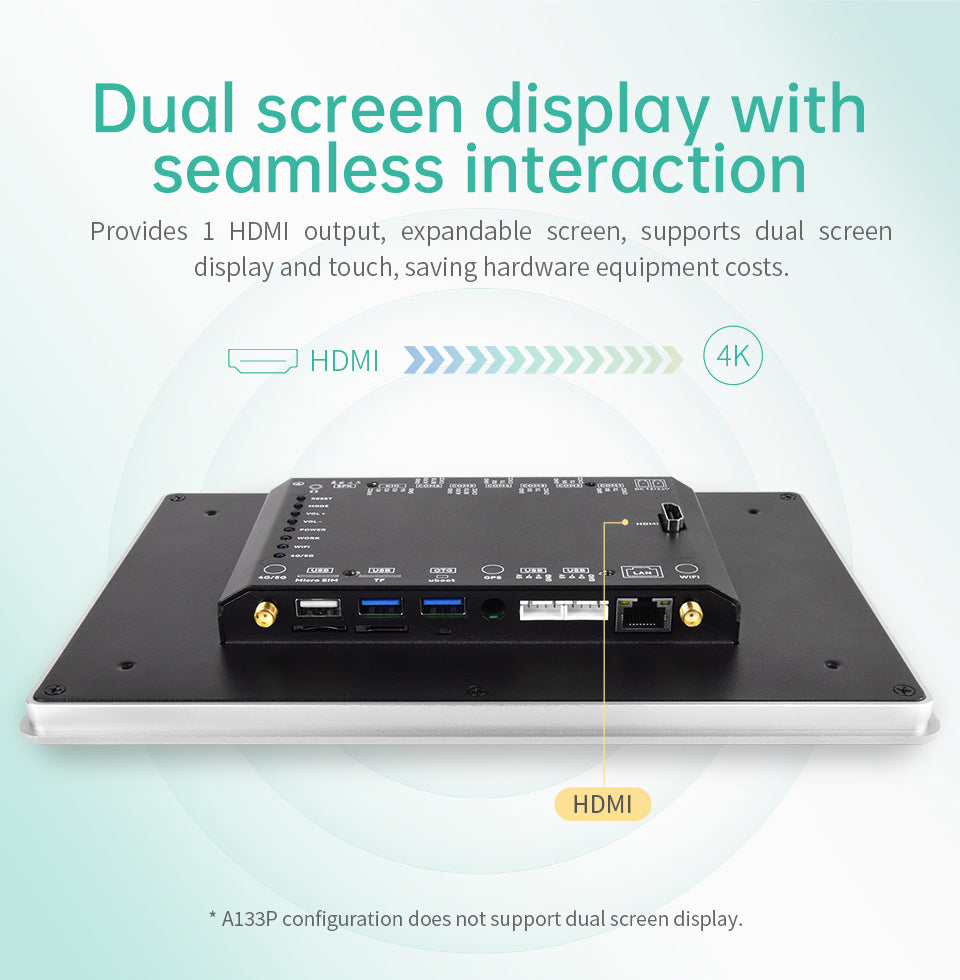

HDMI |
NO |
HDMI 2.0 |
HDMI 2.0 |
|
Ethernet |
100Mbps |
1000Mbps |
1000Mbps |
|
COM |
Support (optional, choose between COM and Uart6) |
NO |
NO |
|
CAN |
NO |
NO |
Support (optional, choose between COM and Uart6) |
|
WiFi |
Standard Single frequency WiFi6(Optional Dual-band WiFi6) |
||
|
Bluetooth |
WiFi6 standard BT 5.2 |
||
|
HP& MIC |
1-way 4-segment integrated 3.5mm socket for earphones |
||
|
Power amplifier |
1 channel 8 euro 3W dual audio amplifier output (Built-in 8 euro 3W speaker, optional) |
||
|
USB |
2USB socket, 2 USB hosts, 1 USB OTG socket |
||
|

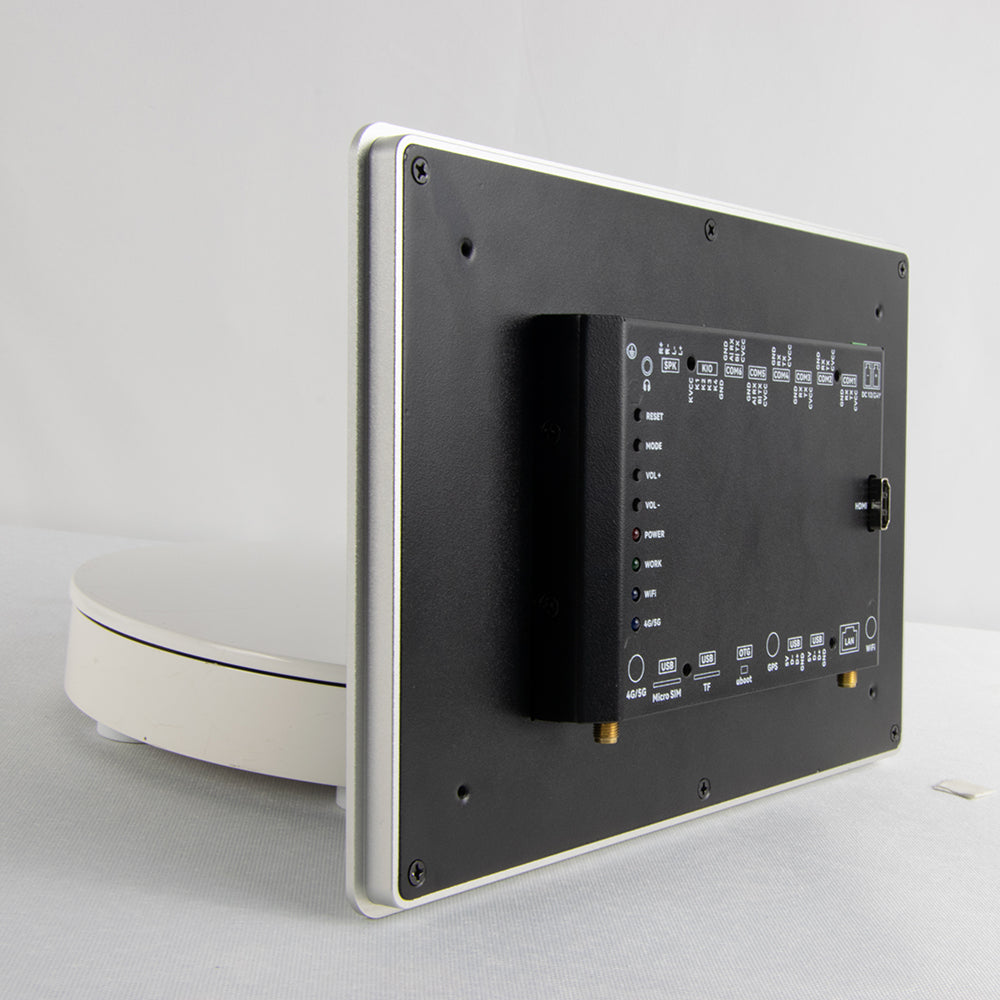

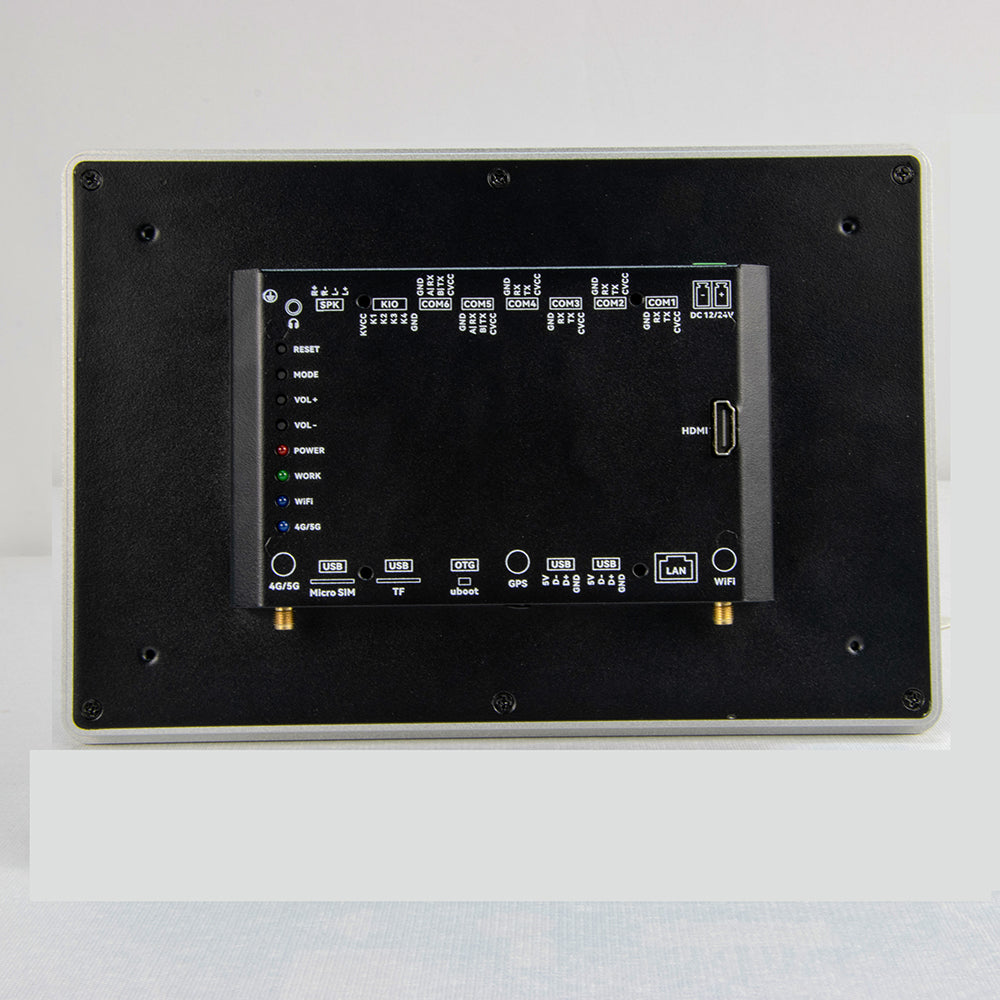

Serial port |
2-way TTL, 2-way RS232, 2-way RS485 |
||
|
POE (Optional) |
One built-in POE module, which supports POE power supply for the RJ45 network port（30W or 70W optional） |
||
|
4G/5G (Optional) |
EC25EFA/EC25EUXGR/EC25JFA/EC25AUXGR/EC25AFXGA/EC25AUXGR/EG25GGB 4G module with GPS |
||
|
GPS (Optional) |
Need 4G module,Supports dual positioning of Beidou and GPS |
||
| SIM |
1-way Micro SIM card slot |
||
|
TF |
1-way self-ejecting TF card socket, up to 256GB TF card support |
||
|
GPIO |
4-way GPIO signal |
||
|
LED |
4-way, power light, running indicator light, WiFi indicator light, 4G/5G network indicator light |
||
|
RTC |
Ultra-low power RTC circuit (CR1220 button battery), support timing switch |
||
|
Button |
Reset key, return key, volume+and volume -, burn key |
||
|
Source |
1 circuit, DC12V ± 5%/DC24V ± 5% power supply, DC 2P-3.81MM |
||
